PVC-MDF Acoustical Grille

1. Dimensions: Length 2400 mm, 2440 mm, 3000 mm, 3600 mm; Width: 600 mm; Thickness: 21 mm (9 mm PET + 12 mm MDF) 2. Material: MDF + PET 3. Fire Rating: B1 4. Sound-absorbing panels are typically made with a wooden frame covered with multiple layers of sound-absorbing foam and fabric. Other options include eco-friendly PET felt, as well as custom options such as cork and moss. 1. Acoustic panels play several key roles in improving spatial acoustics. Key functions include: 01. Reverberation reduction in large-scale environments: Acoustic panels absorb reflected sound within a space, preventing unnecessary prolongation of reverberation time and thus improving sound clarity. 0 2. Interior decoration: In addition to their acoustic function, acoustic panels can also be used to add aesthetics and design to a space, providing rich and pleasant, relaxing decorative possibilities. 0 3. Compliance with noise regulations: Acoustic panels help comply with established noise regulations, ensuring a suitable environment in terms of loudness and acoustic comfort. 2. Functional classification: 01. Ceiling panels: Designed for ceiling installation, they significantly reduce echoes and improve sound clarity within a space. 0 2. Wall panels: Installed on walls, they help absorb reflected sound, avoid resonance problems, and improve speech intelligibility. 0 3. Decorative panels: These panels combine acoustic and aesthetic functions; they effectively absorb sound while decorating a space. 3. The most effective application locations for acoustic panels: Understanding how acoustic panels work helps determine the optimal placement for maximum benefit. Common applications include: 01. Offices and meeting rooms – suitable for open layouts and glass partitions, which can easily lead to sound reflections. 0 2. Educational spaces – classrooms, lecture halls, and libraries can create a better learning environment by reducing noise. 0 3. Retail and hospitality industries – restaurants, cafes, and hotels can create a more comfortable environment for guests. 0 4. Recording studios and media rooms – precise acoustic control is crucial in recording and editing spaces, making acoustic panels indispensable. 0 5. Public and government buildings – from parliament halls to transportation hubs, acoustic control can enhance the usability of these venues.

Send Inquiry

Description

PVC-MDF Acoustical Grille: Premium Sound Management Solution for Modern Interiors

Jixiang Furniture delivers enterprise-grade PVC-MDF Acoustical Grille solutions engineered for superior acoustic performance and lasting durability. Our precision-manufactured grilles feature a high-density MDF core (720-850 kg/m³) wrapped in protective PVC film, achieving an impressive Noise Reduction Coefficient (NRC) of up to 0.85 when paired with acoustic backing materials.

With dimensions spanning lengths from 2400mm to 3600mm, width of 600mm, and thickness of 21mm (9mm PET + 12mm MDF), our products meet B1 fire rating standards. Backed by our 300,000㎡ intelligent manufacturing facilities and ISO 9001, CE, FSC, and CARB certifications, we deliver consistent quality across batches exceeding 1 million units annually. Our formaldehyde-free production process ensures E1/E0 emission compliance for healthier indoor environments.

What Makes Our PVC-MDF Acoustical Grille Stand Out?

The product combines advanced substances science with sensible layout. In contrast to conventional stable wooden that warps under humidity modifications, our p.C-encapsulated system presents a moisture-resistant barrier that continues dimensional stability in challenging environments.

The non-porous percent floor resists scratches, uv degradation, and chemical cleansing retailers. This eliminates the maintenance burden of oiling and refinishing required through natural wood alternatives. Your funding continues its appearance for 10-15 years with simple dusting or damp material cleansing.

Our manufacturing process ensures a hundred% shade consistency across huge production runs. This solves a important project faced by architects and contractors dealing with multi-phase initiatives in which matching finishes is vital.

Technical Specifications

Parameter	Specification
Length Options	2400mm / 2440mm / 3000mm / 3600mm
Width	600mm
Thickness	21mm (9mm PET + 12mm MDF)
Core Material	Medium Density Fiberboard (MDF)
Surface Material	Polyvinyl Chloride (PVC) + PET felt
Core Density	720-850 kg/m³
Fire Rating	B1 (Class B-s1, d0 per EN 13501-1)
Noise Reduction Coefficient	Up to 0.85 (with 50mm acoustic fleece)
Formaldehyde Emission	E1/E0 standard
Temperature Resistance	-20°C to +60°C
Dimensional Tolerance	±0.2mm

Key Performance Advantages

Advanced acoustic manage: our grilles effectively lessen reverberation time in huge areas. Sound waves pass among precisely spaced slats into the absorption layer at the back of, enhancing speech readability and normal sound fine.

Improved sturdiness: the p.C wrap protects the mdf middle from effect damage, moisture infiltration, and surface put on. This makes our product perfect for excessive-visitors areas in which traditional materials fail.

Environmental obligation: we use formaldehyde-free production methods and green substances. Our fsc certification confirms responsible sourcing practices that align with green building standards.

Fireplace protection compliance: b1 fireplace score and astm e84 magnificence a compatibility ensure your task meets stringent protection codes for public and industrial installations.

Low upkeep design: the sealed % floor requires no painting, staining, or refinishing for the duration of its carrier lifestyles. This reduces long-time period possession costs substantially.

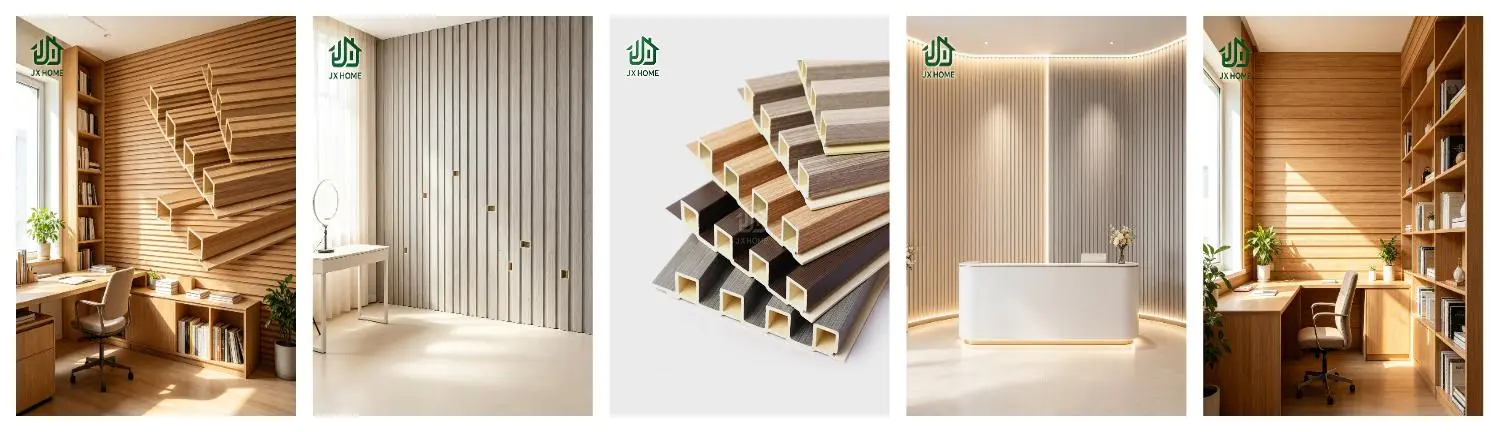

Ideal Application Environments

Corporate headquarters & atriums: huge-scale wall and ceiling installations benefit from our grilles' acoustic dampening competencies. The uv-resistant finish continues steady appearance below herbal mild publicity.

Healthcare facilities: clinic ready regions and corridors require rigorous sanitization protocols. Our non-porous surface withstands repeated cleaning with clinical-grade disinfectants without degrading.

Educational institutions: lecture rooms, lecture halls, and auditoriums gain stepped forward speech intelligibility. The impact-resistant creation survives each day scholar site visitors at wainscot level.

Hospitality venues: restaurants, motels, and cafes create more at ease guest reviews with the aid of controlling pondered sound. The cultured enchantment enhances interior design at the same time as solving functional challenges.

Recording studios & media rooms: unique acoustic control is vital for expert audio environments. Our customizable slat profiles allow engineers to excellent-track diffusion traits.

Public homes: authorities places of work, transportation hubs, and community centers gain from improved usability via powerful noise control.

Ideal Application Environments

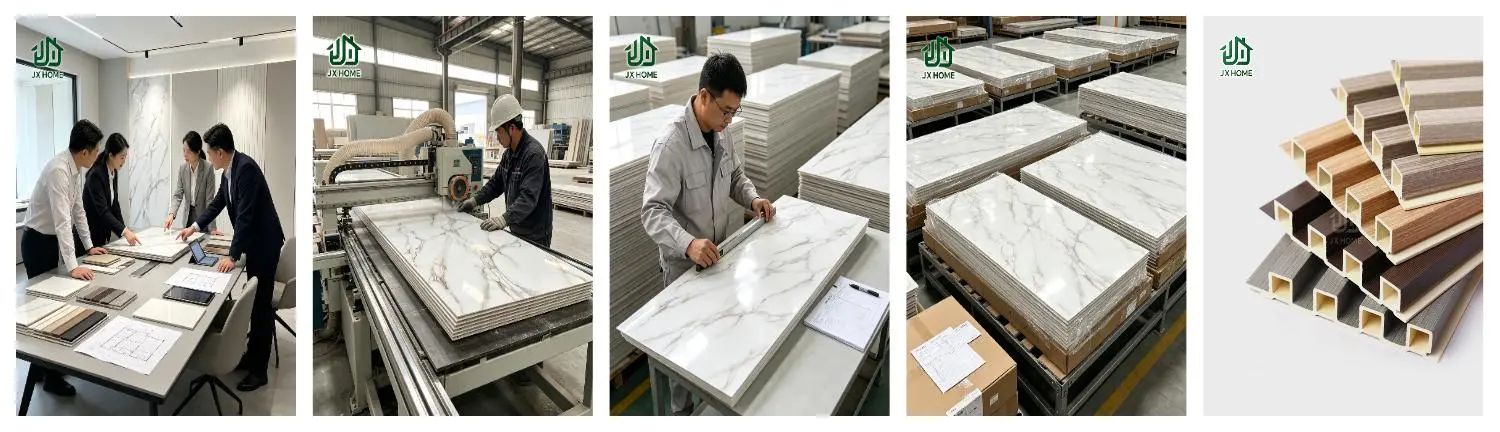

Customization Capabilities for Your Project

Jixiang's advanced cnc production permits whole design flexibility. You can specify custom slat widths, depths, and spacing ratios to attain particular architectural visions and acoustic performance objectives.

Our expert oem and odm services guide your brand requirements. We accommodate custom colors, surface textures, and material combinations. Manufacturing lead instances normally range from 6-30 days depending on complexity and order quantity.

Our engineering team provides comprehensive venture help including space planning consultation, fabric choice steering, and acoustic overall performance calculations. We increase prototypes for technical validation earlier than full production.

Customization Capabilities for Your Project

Quality Assurance You Can Trust

Every PVC-MDF Acoustical Grille undergoes rigorous testing. Our peel strength tests (ISO 2409) verify PVC bonding integrity under extreme thermal cycling. CNC calibration ensures dimensional accuracy within ±0.2mm tolerances.

We monitor formaldehyde emissions the use of the desiccator method to guarantee indoor air exceptional compliance. Acoustic impedance testing in reverberation chambers confirms that actual overall performance matches specifications.

Our visualized order monitoring gadget offers real-time manufacturing updates. You keep full visibility from fabric procurement via very last cargo, permitting assured challenge scheduling.

With enjoy serving over 60 countries and partnerships with most important organizations including china's four biggest kingdom-owned banks and suning, we apprehend worldwide quality expectations.

Quality Assurance You Can Trust

FAQ

Q: How does the PVC finish affect acoustic performance?

A: The PVC coating is applied to individual slats. Sound waves pass between the slats into the absorption layer behind, so the PVC does not reduce the system's overall NRC rating.

Q: Can these grilles be used in high-humidity environments?

A: Yes. The PVC wrap creates a moisture barrier protecting the MDF core. This makes our product significantly more stable than solid wood in tropical climates or near indoor pools.

Q: Do you offer fire-rated options for public spaces?

A: Absolutely. Our cores are treated with flame retardants meeting ASTM E84 Class A or EN 13501-1 B-s1, d0 standards, ensuring compliance with commercial building codes.

Q: What maintenance is required?

A: Minimal. The sealed PVC surface needs no oiling or refinishing. Simply dust regularly or wipe with a damp cloth for the product's 10-15 year lifespan.

Q: Are custom slat profiles available?

A: Yes. Our CNC-based manufacturing accommodates customized widths, depths, and spacing to meet your specific design and diffusion requirements.

Q: How do you ensure consistent color across large orders?

A: Unlike natural veneer, our PVC finishing process ensures 100% color consistency across all manufacturing batches, eliminating matching concerns for phased projects.

Contact Us for Your Acoustic Solution

Ready to enhance your space with premium PVC-MDF Acoustical Grille solutions? Contact us at jixiangjiajuyouxiangongsi@gmail.com to request samples, confirm technical details, or obtain detailed quotations for your upcoming project.
