160*23MM Wall Panel

1. WPC interior wall panels consist of two parts: a substrate and a film paper. 2. RUNTAI substrate formula: 40% PVC resin, 50% wood powder, and 10% other ingredients. 3. Substrate colors can be customized, generally including beige, light yellow, white, and cedar white. 4. The substrate uses PVC foaming technology, is integrally molded, and is sturdy and durable. 5. The film paper comes in various styles and can be selected according to the color chart. Film paper coating uses both cold coating and hot lamination processes. Wood-plastic composite (WPC) is a new type of composite material that uses polyethylene, polypropylene, polyvinyl chloride, and other polyethylene resin adhesives instead of traditional resin adhesives. It is made by mixing waste plant fibers such as wood flour, rice husks, and straw (content exceeding 57%) to create a new type of wood-like material, which is then processed into boards or profiles through plastic processing techniques such as extrusion, molding, and injection molding. By using different production molds, these panels can be made into various shapes, such as grooves or curves. They successfully bridge the gap between the natural beauty of wood and the practical durability of plastic, making them a top candidate material for residential and commercial projects. This product is mainly used for interior wall decoration and is widely used in wall decoration for homes, offices, hotels, and other interior spaces.

Send Inquiry

Description

160*23MM Wall Panel: Premium WPC Cladding Solution from Jixiang Furniture

Jixiang Furniture presents the 160*23MM Wall Panel, a high-performance WPC interior wall cladding designed for discerning contractors and interior designers. Manufactured at our 200,000㎡ intelligent production facility, this panel combines 40% PVC resin and 50% wood powder through advanced co-extrusion technology. The 160mm effective width paired with 23mm profile thickness delivers exceptional impact resistance—40% higher than standard 15mm alternatives—while the deep-groove fluted design creates dramatic shadow effects ideal for premium feature walls.

With annual capacity exceeding 1,000,000 residential furniture sets, Jixiang ensures consistent quality backed by ISO 9001, FSC, and CARB certifications. Each batch undergoes rigorous boiling water testing (expansion rate <0.5%) and achieves B1-grade fire rating with E0 formaldehyde emission standards.

What Makes the 160*23MM Wall Panel Your Best Choice?

The product isn't just another wall covering—it's a comprehensive solution to your most persistent installation challenges.

You're probably familiar with natural wood's endless maintenance demands. This panel eliminates those headaches completely. The multi-cavity hollow structure provides 20dB acoustic damping while maintaining thermal stability from -20°C to +60°C. No painting, no staining, no seasonal warping.

The 23mm thickness gives you the structural integrity commercial projects demand. Hotel lobbies, corporate corridors, and retail spaces experience constant traffic. Your wall surfaces need to withstand luggage impacts, cleaning equipment bumps, and daily wear without showing damage.

Technical Specifications

Parameter	Specification
Dimensions	160mm (width) × 23mm (thickness)
Material Composition	40% PVC resin, 50% wood powder, 10% additives
Density	1.2–1.4 g/cm³
Fire Rating	B1-grade (flame retardant)
Formaldehyde Emission	E0 grade
Color Fastness	Grade 4-5 (ISO 105-A02)
Linear Expansion	<0.05mm/(m·℃)
Acoustic Damping	Up to 20dB reduction
Temperature Resistance	-20°C to +60°C
Service Life	15+ years (indoor commercial use)
Surface Treatment	UV-stable polymer film / co-extruded shield
Installation System	Tongue-and-groove (0.5mm tolerance)

Where Should You Use the 160*23MM Wall Panel?

High-Traffic Commercial Interiors

Your hotel reception areas and corporate hallways need materials that look pristine year after year. The product provides the impact resistance necessary when luggage carts and maintenance equipment make daily contact. The integral molding process creates a sturdy, damage-resistant surface that maintains its appearance without constant touch-ups.

Moisture-Prone Transitional Spaces

Covered balconies, spa entrance areas, and restaurant semi-outdoor sections present unique challenges. Traditional materials fail when humidity fluctuates or temperature variations occur. This panel's waterproof WPC composition prevents the rot, delamination, and mold growth you'd expect from timber alternatives.

Premium Residential Feature Walls

TV background walls and bed headboards demand visual sophistication. The deep fluted profile integrates beautifully with hidden LED strip lighting. You'll appreciate how the grooves conceal wall imperfections while providing practical cable management channels.

Why Architects and Contractors Trust This Solution?

Superior Structural Performance

The 23mm profile thickness isn't arbitrary—it's engineered for optimal strength-to-weight ratio. Shore Hardness testing confirms a minimum 70HD rating, preventing surface scratching in high-use environments. The tongue-and-groove system with 0.5mm tolerance ensures seamless connectivity across large installations.

Environmental Responsibility Meets Durability

You need FSC-certified materials that satisfy sustainability requirements without compromising performance. Our 160*23MM Wall Panel uses recycled wood fibers, conserving forest resources while delivering the natural wood aesthetic your clients expect. It's insect-resistant, mildew-proof, and requires zero chemical treatments throughout its 15+ year lifespan.

Simplified Installation Process

Time is money on your projects. These panels install directly onto light steel keel or wood furring systems. No specialized tools required. No painting delays. No glue application. The pre-finished surface means you can complete wall cladding installations 60% faster than traditional timber battening methods.

Quality Assurance You Can Verify

Jixiang continues strict excellent protocols throughout our three hundred,000㎡ production complex. Each production run undergoes four important assessments:

Boiling water immersion: four hours at a hundred°c confirms growth stays underneath 0.5% with zero delamination among center and surface layers.

Cross-reduce adhesion testing: iso 2409 standards make sure ornamental movies resist mechanical pressure without peeling.

Xenon arc growing older simulation: 2,000-hour sunlight publicity trying out ensures color deviation (delta e) stays under 1.5 across one-of-a-kind batches.

Temperature biking: repeated freezing and heating cycles affirm structural integrity in the course of the -20°c to +60°c operational variety.

Our visualized order monitoring machine presents real-time production updates. You may recognize exactly whilst your materials enter manufacturing, whole best inspection, and ship in your vacation spot most of the 60+ countries we serve.

Quality Assurance You Can Verify

FAQ

Q: Does the panel increase substantially with temperature changes?

A: All polymer-primarily based substances revel in thermal movement. The product has a linear growth coefficient under 0.05mm per meter in keeping with degree celsius. We advise leaving 3-5mm growth gaps at edges during installation to deal with this minimum movement effectively.

Q: Am i able to installation directly on choppy masonry walls?

A: For pleasant results, walls have to have deviation beneath 5mm. While dealing with rougher surfaces, set up a mild metal keel or timber furring device first. This ensures a perfectly flat finished appearance and right panel alignment.

Q: How does 23mm thickness compare to thinner 15mm alternatives?

A: The 23mm profile can provide approximately 40% higher effect resistance. Extra importantly, the deeper grooves create dramatic shadow traces that decorate spatial intensity—a important gain for high-end indoors designs wherein visual impact topics.

Q: Will colorings match among distinctive order shipments?

A: We use spectrophotometry to preserve delta e values below 1.0. However, for big initiatives requiring a couple of shipments, we strongly suggest ordering your whole amount in a unmarried batch. This gets rid of even minor pigment versions that could occur among production runs.

Q: What preservation does the panel require?

A: Sincerely none. Easy periodic cleansing with moderate detergent and water continues appearance. No refinishing, no sealing, no special remedies. The uv-solid surface coating protects in opposition to fading, whilst the water-resistant center prevents moisture-related degradation.

Q: Os it appropriate for outside packages?

A: This panel is engineered for interior and included semi-out of doors installations. It plays excellently in blanketed balconies, soffits, and transitional spaces protected from direct vertical uv publicity. For absolutely uncovered outdoors packages, seek advice from our technical crew for specialised exterior-grade formulations.

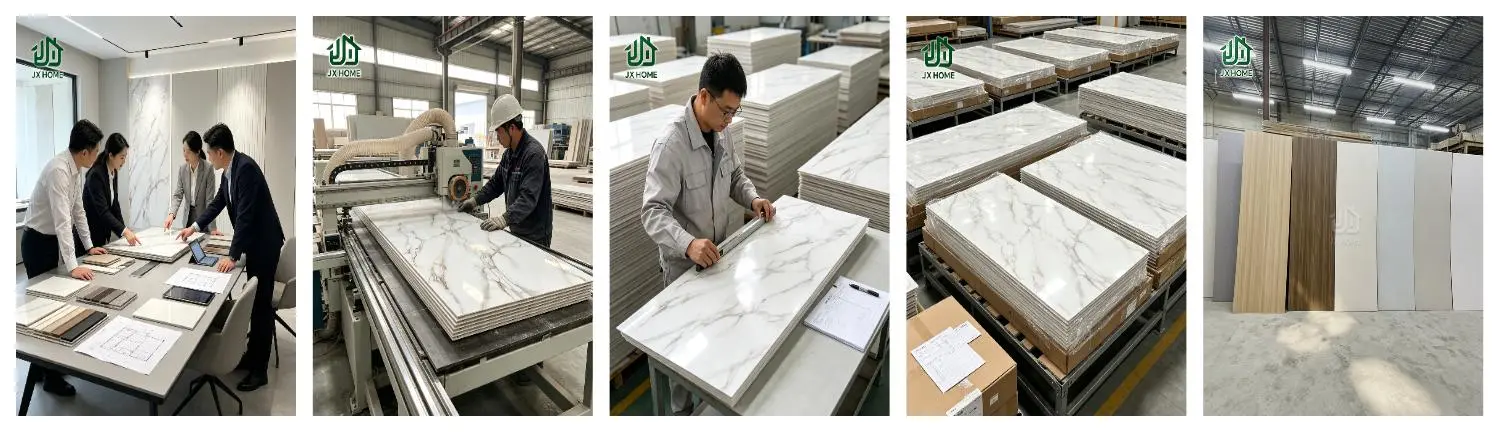

Production Capacity and Customization

Jixiang's two hundred,000㎡ residential furnishings production center supports flexible customization to your assignment necessities. Our substrate colorations encompass beige, mild yellow, white, and cedar white, with film paper to be had in numerous patterns in step with our comprehensive shade chart.

Both cold coating and warm lamination approaches make certain ultimate adhesion between substrate and ornamental surface. Production lead times typically variety from 6 to 30 days depending on order volume and customization complexity.

With annual ability exceeding 1,000,000 fixtures sets and installed partnerships with foremost builders, government tasks, and international motel groups, we deal with big-quantity orders with consistent fine and dependable transport schedules.

Production Capacity and Customization

Ready to Elevate Your Next Project?

Transform your wall surfaces with the 160*23MM Wall Panel. Contact our technical team at jixiangjiajuyouxiangongsi@gmail.com to request detailed specifications, sample materials, or project consultation.
