7.5MM WPC Wall Panel

1. WPC interior wall panels consist of two parts: a substrate and a film paper. 2. RUNTAI substrate formula: 40% PVC resin, 50% wood powder, and 10% other ingredients. 3. Substrate colors can be customized, generally including beige, light yellow, white, and cedar white. 4. The substrate uses PVC foaming technology, is integrally molded, and is sturdy and durable. 5. The film paper comes in various styles and can be selected according to the color chart. Film paper coating uses both cold coating and hot lamination processes. Wood-plastic composite (WPC) is a new type of composite material that uses polyethylene, polypropylene, polyvinyl chloride, and other polyethylene resin adhesives instead of traditional resin adhesives. It is made by mixing waste plant fibers such as wood flour, rice husks, and straw (content exceeding 54%) to create a new type of wood-like material, which is then processed into boards or profiles using plastic processing techniques such as extrusion, molding, and injection molding. By using different production molds, these panels can be made into various shapes, such as grooves or curves. They successfully bridge the gap between the natural beauty of wood and the practical durability of plastic, making them a top candidate material for residential and commercial projects. This product is mainly used for interior wall decoration and is widely used in wall decoration for homes, offices, hotels, and other interior spaces.

Send Inquiry

Description

7.5MM WPC Wall Panel - Premium Interior Wall Cladding Solution

Jixiang Furniture delivers enterprise-grade 7.5MM WPC Wall Panel engineered for demanding commercial and residential applications. Our advanced formula combines 40% PVC resin with 50% wood powder, creating panels with superior density (800-950kg/m³) and Shore D hardness exceeding 70. Manufactured in our 200,000㎡ intelligent production facility, these panels achieve B1 class fire-retardant rating (EN 13501-1) and deliver enhanced screw-holding force of ≥1200N.

With certifications including ISO 9001, CE, FSC, and CARB, our panels meet international quality standards. Production capacity exceeds 1,000,000+ sets annually, with lead times ranging 6-30 days depending on customization requirements. Each panel undergoes rigorous quality testing to ensure consistent performance across global installations.

What Makes Our WPC Wall Panels Stand Out?

Our product bridges the distance among herbal timber aesthetics and current-day sturdiness. You get the nice and cozy, inviting look of wood with out the preservation complications.

The substrate makes use of percent foaming era for critical molding. This creates a robust, prolonged-lasting foundation that resists warping and continues dimensional stability. Your partitions stay straight and proper, even in tough environments.

Film paper alternatives are to be had in severa patterns in step with our whole color chart. Every bloodless coating and heat lamination strategies make certain the decorative layer bonds permanently to the substrate. You can personalize substrate colours which includes beige, moderate yellow, white, and cedar white to fit your undertaking vision.

Technical Specifications

Parameter	Specification
Thickness	7.5mm
Density	800-950 kg/m³
Composition	40% PVC resin, 50% wood powder, 10% other ingredients
Hardness	Shore D >70
Fire Rating	B1 class (EN 13501-1) - self-extinguishing
Screw-Holding Force	≥1200N
Thermal Expansion	<0.05% (20°C to 60°C)
Substrate Colors	Beige, light yellow, white, cedar white (customizable)
Surface Finish	Multiple film paper styles available
Coating Process	Cold coating and hot lamination

Key Benefits for Your Project

Environmentally Responsible - Our 7.5MM WPC Wall Panels are fully recyclable as thermoplastic composites. They conserve forest resources while supporting circular economy goals. FSC certification confirms our commitment to sustainable sourcing.

Waterproof performance - the closed-cell shape prevents water absorption completely. You may set up with self assurance in basements, bathrooms, and different high-humidity areas where conventional substances might fail.

0 renovation trouble - no portray or glue required at some point of installation. Routine cleansing with non-abrasive cleaners continues surfaces looking sparkling. The panels face up to insects and mould obviously, removing the want for chemical treatments.

Impact resistance - excessive density and hardness ratings make these panels ideal for high-visitors areas. Hotel lobbies, health facility corridors, and commercial areas advantage from advanced durability that withstands luggage carts and constant use.

Temperature stability - the uv-resistant pinnacle layer and balanced wooden-plastic ratio save you warping in intense conditions. Glass-enclosed sunrooms and semi-outdoor patios hold their look in spite of direct daylight and thermal biking.

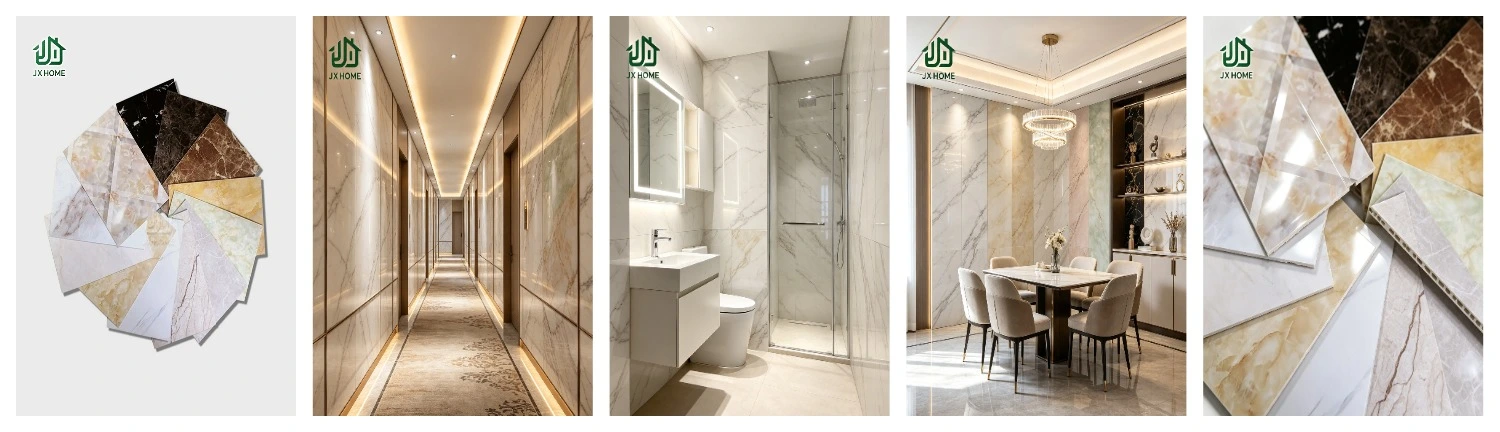

Where You Can Use 7.5MM WPC Panels?

Business areas - resort lobbies, office homes, retail shops, and clinic corridors benefit expert aesthetics with realistic sturdiness. The b1 fire score meets strict constructing codes for public interior areas.

Residential programs - dwelling rooms, bedrooms, dining regions, and accessory partitions remodel with herbal timber appearance. Basements and bathrooms mainly gain from waterproof houses.

Hospitality tasks - restaurant interiors, café walls, and reception areas create warm, inviting atmospheres that arise to day by day wear.

Company environments - convention rooms, executive offices, and common regions assignment professional beauty while maintaining smooth renovation.

Where You Can Use 7.5MM WPC Panels?

Installation Considerations

The 7.5mm thickness offers tension to bridge minor floor imperfections. You could install directly over current tile when surfaces are flat. The panel thickness is significant sufficient to cover grout line depressions with out visible telegraphing.

Leave 2-3mm growth gaps at perimeters. This incorporates the herbal enlargement of the polymer factor for the duration of temperature modifications. The tongue-and-groove locking machine calls for precision within zero.1mm for seamless installations across long wall sections.

More desirable screw-holding pressure supports heavy-duty mounting clips. You may integrate hidden lights structures without compromising structural integrity. The panels work with numerous mounting methods to fit your installation preferences.

Quality Assurance Process

Each batch undergoes the boiling water test (astm d1037). Panels are submerged for 2-4 hours to confirm facet swelling remains beneath 1%. This confirms water-resistant overall performance in real-world situations.

Color consistency is controlled through delta e (δe) spectrophotometer readings. Batch-to-batch uniformity remains within a 0.Five threshold. You acquire regular colour matching throughout large installations.

Surface abrasion resistance is demonstrated using the taber take a look at (astm d4060). The ornamental film withstands 300-500 cycles, ensuring long-time period look retention in excessive-site visitors areas.

Digital calipers affirm tongue-and-groove locking precision. Deviations exceeding 0.1mm are rejected to prevent visible gaps in the course of set up.

Quality Assurance Process

FAQ

Q: Does the panel require expansion gaps?

A: Yes, despite its stability, leave a 2-3mm gap at perimeters. This accommodates the natural expansion of the polymer component during temperature fluctuations.

Q: Can I install over existing tile?

A: Yes, provided the surface is flat. The 7.5mm thickness is rigid enough to bridge minor grout line depressions without telegraphing through the surface.

Q: What is the expected lifespan in commercial settings?

A: When maintained with non-abrasive cleaners, panels typically last 15+ years without structural degradation. High-traffic environments see consistent performance throughout this period.

Q: Is the material recyclable?

A: Yes, as a thermoplastic composite, panels can be reground and reused in new extrusion cycles. This supports circular economy goals and reduces environmental impact.

Q: How does it perform under fire safety audits?

A: It consistently passes B1-S1, d0 testing, making it compliant with most international building codes for public interior spaces. The material is self-extinguishing and produces minimal smoke.

Q: What customization options are available?

A: You can customize substrate colors, film paper patterns, panel dimensions, and functional requirements. Our OEM/ODM services support your specific project needs with flexible production.

Why Partner with Jixiang Furniture?

Our 200,000㎡ residential furnishings production middle and a hundred,000㎡ business manufacturing base supply consistent high-quality at scale. Advanced automatic manufacturing traces cope with large-extent initiatives successfully.

We export to 60+ international locations and regions international. Enjoy serving numerous worldwide markets ensures we apprehend your regional necessities and building requirements.

Actual-time visualized order tracking presents production progress updates. You preserve task scheduling self belief with obvious communication from idea to of completion.

Comprehensive challenge management help includes area making plans, material choice, sample development, and technical validation. Our crew guides you thru each section.

Contact Us

Ready to transform your interior spaces with 7.5MM WPC Wall Panel? Contact jixiangjiajuyouxiangongsi@gmail.com for technical specifications, customization options, or project consultation.
