WPC Square Tubes Ceiling Model A

1. WPC interior wall panels consist of two parts: a substrate and a film paper. 2. RUNTAI substrate formula: 40% PVC resin, 50% wood powder, and 10% other ingredients. 3. Substrate colors can be customized, generally including beige, light yellow, white, and cedar white. 4. The substrate uses PVC foaming technology, is integrally molded, and is sturdy and durable. 5. The film paper comes in various styles and can be selected according to the color chart. Film paper coating uses both cold coating and hot lamination processes. Wood-plastic composite (WPC) is a new type of composite material that uses polyethylene, polypropylene, polyvinyl chloride, and other polyethylene resin adhesives instead of traditional resin adhesives. It is made by mixing waste plant fibers such as wood flour, rice husks, and straw (content exceeding 63%) to create a new type of wood-like material, which is then processed into boards or profiles through plastic processing techniques such as extrusion, molding, and injection molding. By using different production molds, these panels can be made into various shapes, such as grooves or curves. They successfully bridge the gap between the natural beauty of wood and the practical durability of plastic, making them a top candidate material for residential and commercial projects. This product is mainly used for interior wall decoration and is widely used in wall decoration for homes, offices, hotels, and other interior spaces.

Send Inquiry

Description

WPC Square Tubes Ceiling Model A | Premium Wood Plastic Composite Linear Ceiling System

WPC Square Tubes Ceiling Model A from Jixiang Furniture delivers exactly that.

Manufactured in our 100,000㎡ commercial furniture production base, this premium architectural linear suspension system features a proprietary formula: 40% PVC resin, 50% wood powder, and 10% specialized additives. With an annual production capacity exceeding 600,000+ commercial furniture sets, we engineer each profile using advanced PVC foaming technology for integral molding strength. The system achieves a density of 1.3-1.45g/cm³, moisture absorption below 0.5% in 24 hours, and Shore D hardness above 70—ensuring your ceiling maintains dimensional stability even in challenging environments. Backed by ISO 9001, CE, FSC, and CARB certifications, this model meets international quality and environmental standards.

What Makes WPC Square Tubes Ceiling Model A Different?

Conventional wooden ceilings demand constant preservation. Gypsum products fail in humid conditions. Steel structures lack warmth and acoustic performance.

The product solves these critical ache points. This wooden plastic composite machine combines 60% natural wooden fiber aesthetics with 30% hdpe/percent polymer durability. You get the timber-appearance end your customers anticipate without the termite hazard, rot issues, or seasonal warping that plague natural timber.

The square profile design permits seamless integration with hvac, lighting fixtures, and smoke extraction systems. Whether or not you're specifying for a shopping center atrium or an indoor pool facility, this ceiling machine plays consistently across various applications.

Where Should You Use This Ceiling System?

Excessive-site visitors commercial areas

Shopping shops, airport terminals, and corporate lobbies benefit from the open-grid aesthetic. The machine offers acoustic dampening at the same time as maintaining visual openness. Your facility profits each function and shape.

Humid public environments

Indoor swimming pools, spa facilities, and health facilities face 90%+ humidity levels each day. This ceiling withstands steady moisture publicity and chlorine without deteriorating. No portray, sealing, or shielding coatings required.

Semi-out of doors transit areas

Railway systems, protected walkways, and constructing canopies experience temperature fluctuations. With a thermal growth coefficient of approximately 0.04mm/m·°c, the machine manages seasonal changes without warping or delamination. Even indirect wind masses won't compromise structural integrity.

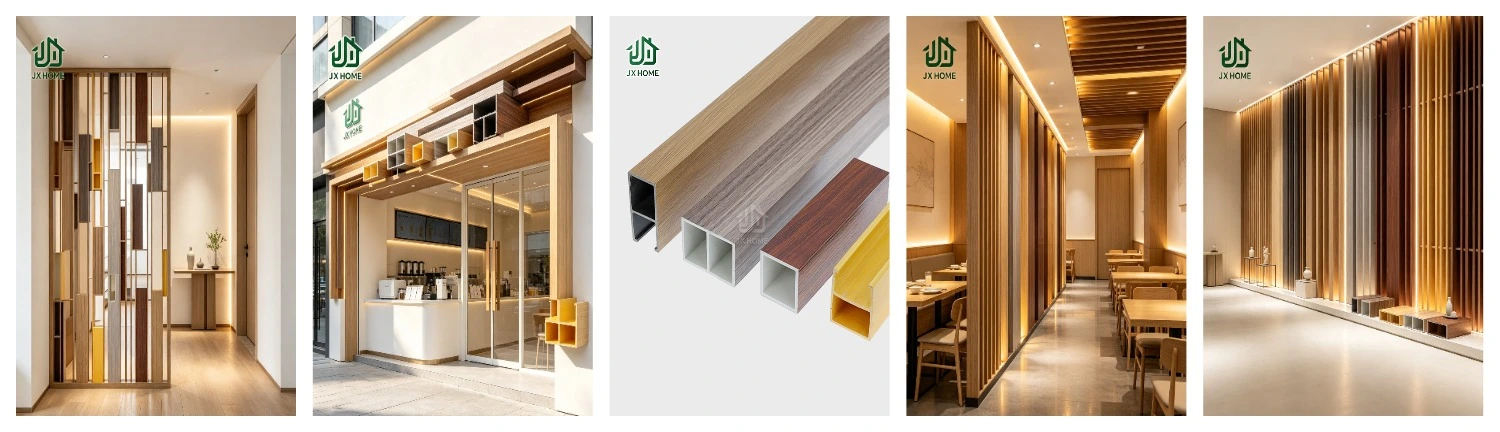

environment

Technical Specifications

Parameter	Specification
Substrate Composition	40% PVC resin, 50% wood powder, 10% additives
Density	1.3-1.45 g/cm³
Moisture Absorption (24h)	<0.5%
Shore D Hardness	>70
Flame Retardancy	Class B1-s1, d0 (EN 13501-1)
Formaldehyde Emission	E0/E1 (≤0.5 mg/L)
Thermal Expansion Coefficient	~0.04 mm/m·°C
Color Variance (5 years)	Delta E <2.0
Available Substrate Colors	Beige, light yellow, white, cedar white
Surface Finish	Film paper coating (cold/hot lamination)
Dimensional Tolerance	±0.5mm

Why Architects and Contractors Choose This System?

Recyclable and Forest-Friendly

Every panel conserves natural timber resources. You specify sustainable materials without compromising on appearance.

Waterproof and Rustproof

Unlike metal or wood alternatives, this system won't corrode, rot, or degrade in moisture-rich environments.

Zero Maintenance Requirements

No painting. No gluing. No seasonal treatments. Your maintenance budgets stay predictable and low.

Insect and Mold Resistant

Termites ignore it. Mold won't grow on it. Your building envelope stays protected year after year.

Design Flexibility

Choose from various film paper styles via our color chart. Customize substrate colors to match your project palette. Create unique profiles using different production molds—grooves, curves, or custom geometries.

Easy Installation and Cleaning

Standard suspension systems work seamlessly. Routine cleaning requires only basic wiping. Your installation teams save time on every project.

Quality Control You Can Trust

Jixiang Furniture implements five rigorous inspection protocols for WPC Square Tubes Ceiling Model A:

Dimensional Accuracy Testing

Cross-sectional measurements remain within ±0.5mm tolerance. This ensures seamless installation with specialized keel systems and eliminates visible gaps.

Boiling Water Immersion Test

Panels undergo 4-hour exposure at 100°C. We check for internal delamination and excessive swelling. Only batches meeting strict standards proceed to shipment.

UV Aging Simulation

Using ASTM G155 Xenon Arc testing, we verify color fastness and surface integrity. Your ceiling maintains its appearance for years, with Delta E color variance below 2.0 after five years of indoor exposure.

Screw Withdrawal Force Testing

Suspension hardware must hold securely. We test to ensure reliable mechanical fastening across the product's service life.

Formaldehyde Emission Control

Every batch undergoes independent testing. We consistently achieve E0/E1 standards (≤0.5 mg/L), guaranteeing compliance with international indoor air quality regulations.

Quality Control You Can Trust

Project Support From Concept to Completion

With experience serving 60+ countries and managing projects for China's major banks, China Mobile, Suning, and Rezen Hotel Group, Jixiang provides comprehensive support:

Space planning consultation tailored to your ceiling design requirements
Material selection guidance based on environmental conditions
Sample development and prototype validation
Production progress visualization through our order tracking system
Logistics coordination for on-time delivery
Remote installation guidance and technical assistance

Our typical production lead time ranges from 6-30 days, depending on customization requirements and order volume. You gain transparency and control throughout your project timeline.

FAQ

Q: Can the product be used outdoors?

A: It's engineered for interior and semi-outdoor environments like covered walkways and building canopies. Direct weather exposure isn't recommended, but it excels in transitional spaces with partial protection.

Q: How does this system compare to aluminum ceiling systems?

A: Unlike metal alternatives, this composite offers superior acoustic dampening, warmer aesthetics, and eliminates condensation issues common with aluminum in humid environments. It won't dent or scratch as easily during installation.

Q: What span lengths can this ceiling support without sagging?

A: With a modulus of elasticity suited for long-span applications and Shore D hardness above 70, the system maintains structural integrity across extended runs. Specific span capabilities depend on installation configuration—consult our technical team for project-specific recommendations.

Q: Is the material genuinely environmentally friendly?

A: Yes. It holds FSC and China Environmental Labeling Product Certification. The composition uses recycled wood fiber, and the entire system is recyclable at end-of-life, contributing to LEED and green building certifications.

Q: How do I clean and maintain these ceiling panels?

A: Simple wiping with standard cleaning solutions suffices. No special treatments, sealants, or refinishing needed. The film paper surface resists staining and maintains appearance with minimal effort.

Q: Can you customize the profile dimensions and colors?

A: Absolutely. Our OEM/ODM capabilities allow customization of dimensions, substrate colors, and film paper finishes. We'll develop samples based on your specifications for approval before full production.

Ready to Specify for Your Next Project?

Transform your commercial space with WPC Square Tubes Ceiling Model A. Contact our technical team at jixiangjiajuyouxiangongsi@gmail.com to request detailed specifications, discuss customization options, or arrange sample evaluation.
